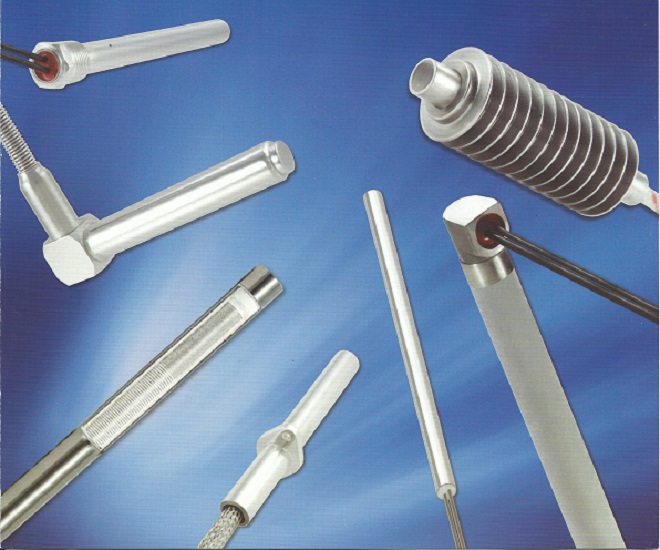

Cartridge heaters are high-density heating cells that have their nickel chrome heating cores positioned internally as close as possible to the outside shell. The specially formulated MgO electrical insulating medium utilized inside a cartridge heater is transformed into a rock-hard, highly efficient heat transferring medium through a special cold forming process.
Cartridge heaters can withstand tough industrial usage; they can transmit up to 200 watts/in² heating capacity and are able to attain up to 1500°F sheath temperature. In order to facilitate installation and heat transmission, cartridge heaters are made 0.004 inches less than the nominal size of the receptacle hole, with a tolerance of +/- 0.002 in. Standard cartridge heaters are supplied with electrical leads that are connected internally within a 3/8 inch cold section. In excessively hot applications, the length of this cold section could be increased.
Cartridge heaters can be dual-voltage, three-phase, and/or supplied with a ground terminal. With ten different termination styles, mounting attachments and various optional features, high-density cartridge heaters are widely used in numerous high temperature industrial applications. Here are some examples:
Industrial Applications for Cartridge Heaters:- PLASTIC MOLDINGS
- PACKAGING EQUIPMENT
- HEATING TANKS
- PLASTIC EXTRUDERS
- LABELLING MACHINERY
- AIR AND LIQUID HEATING

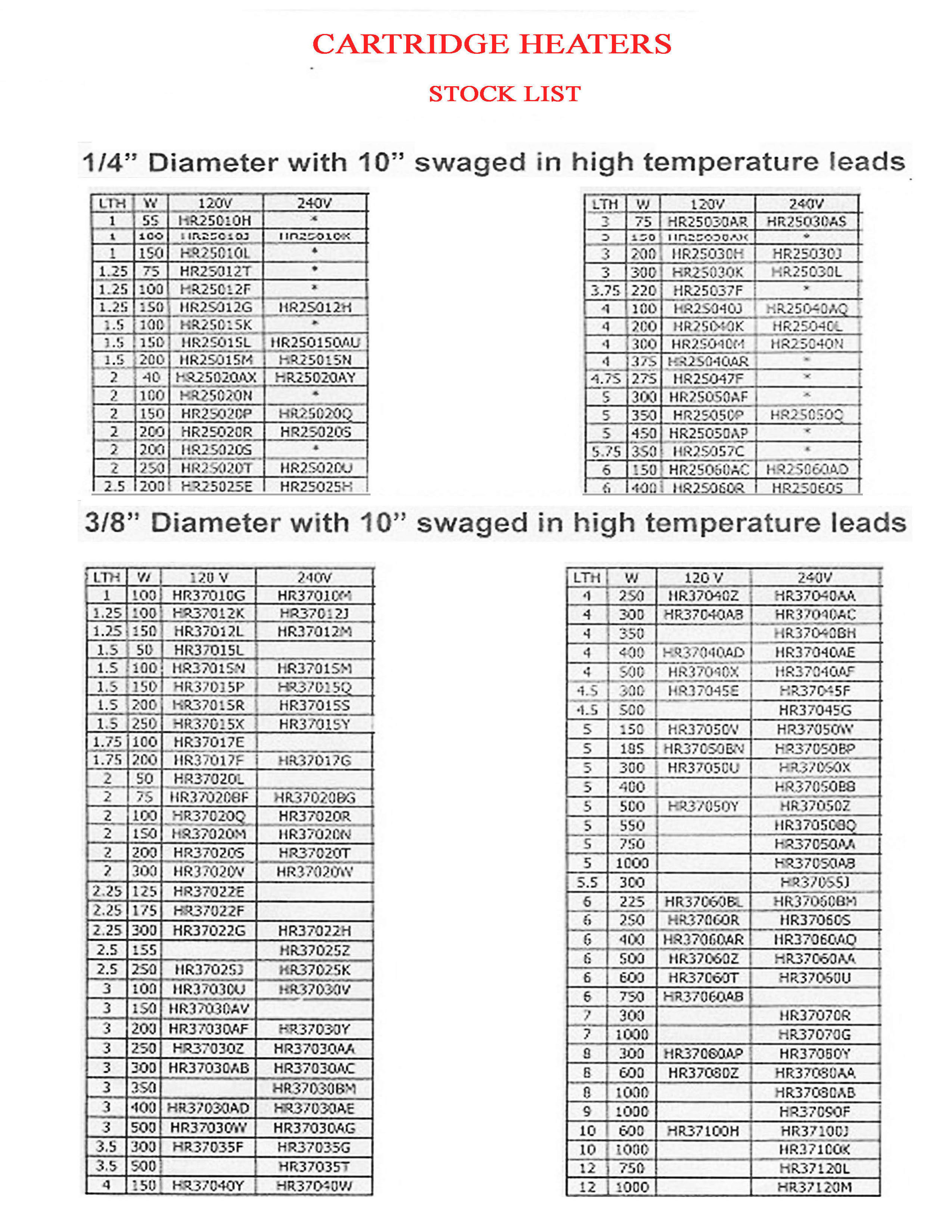

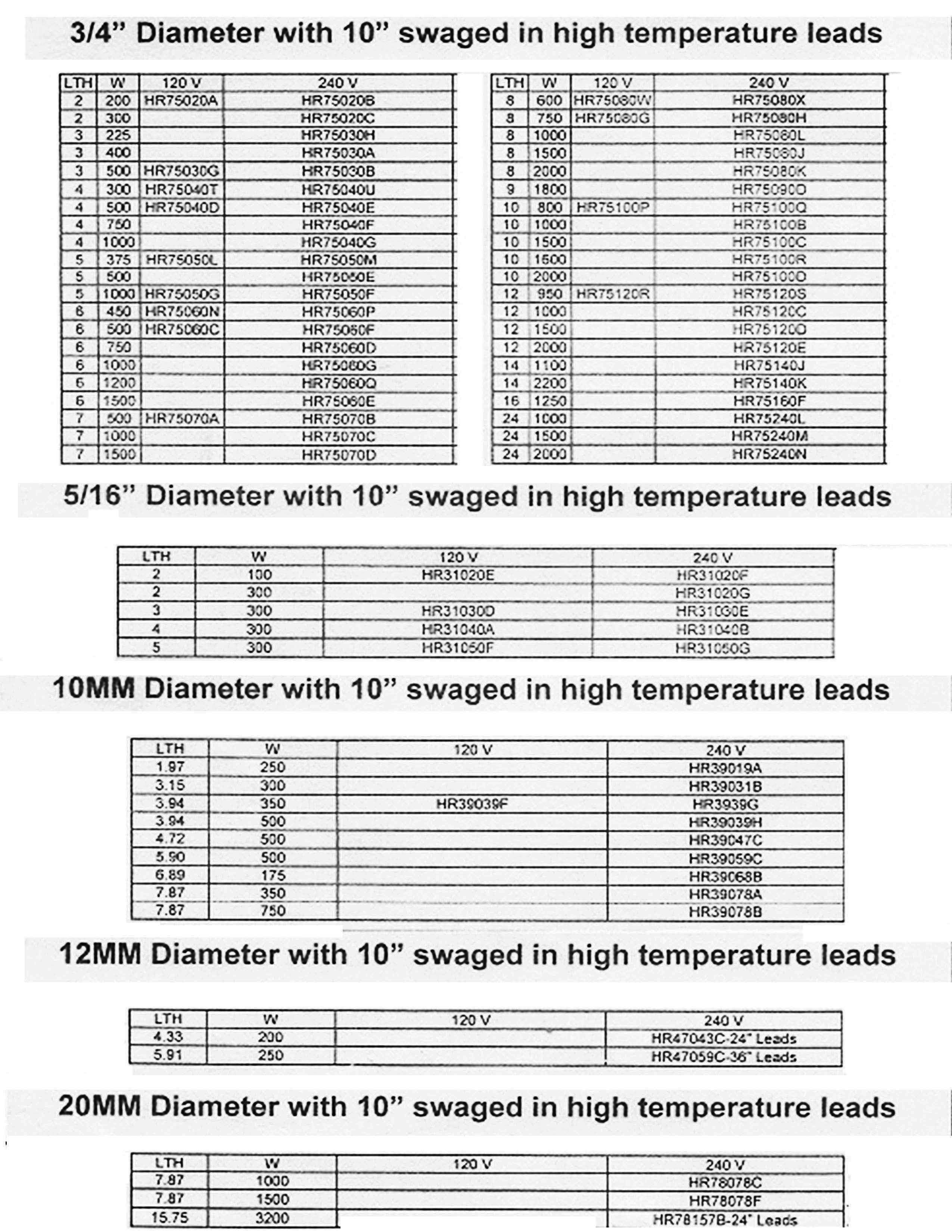

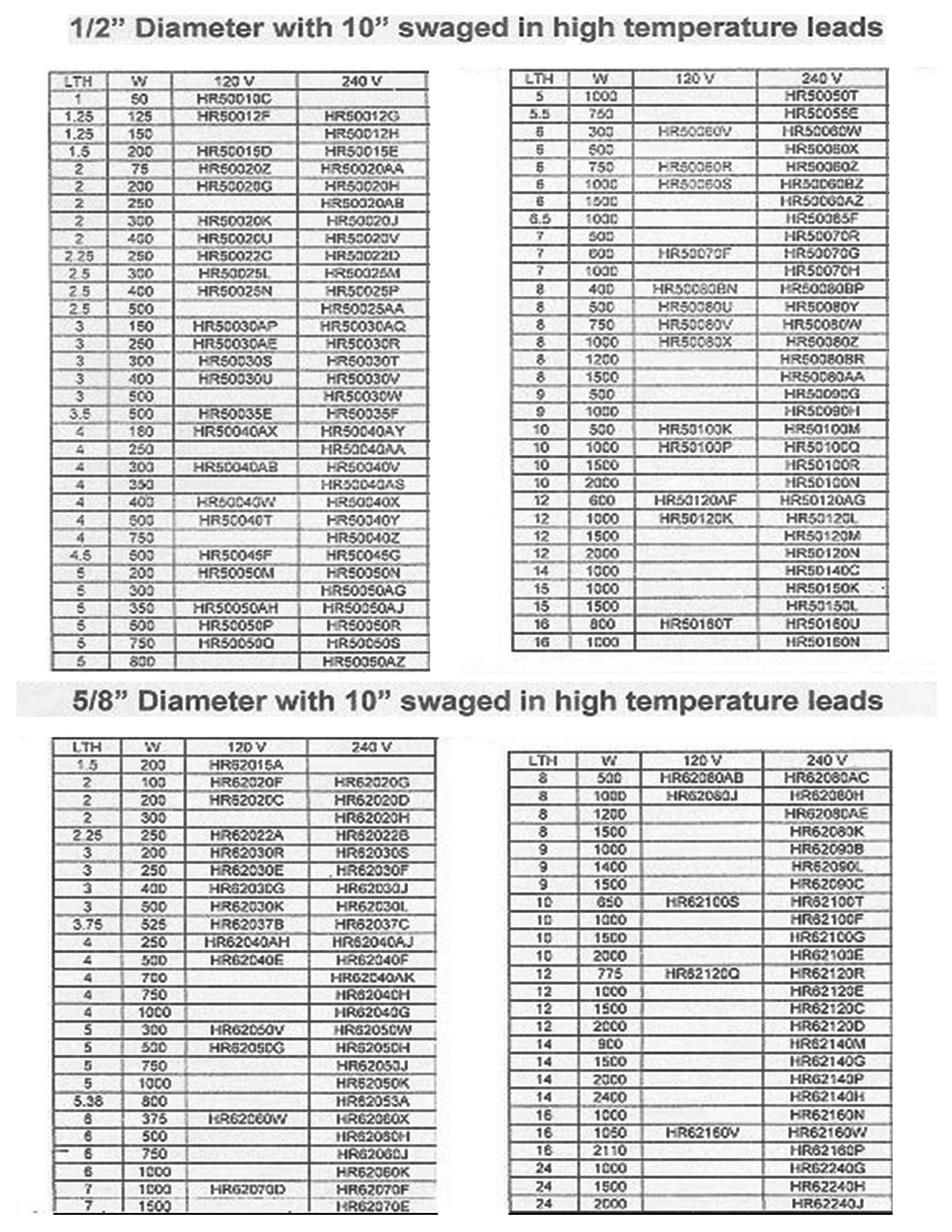

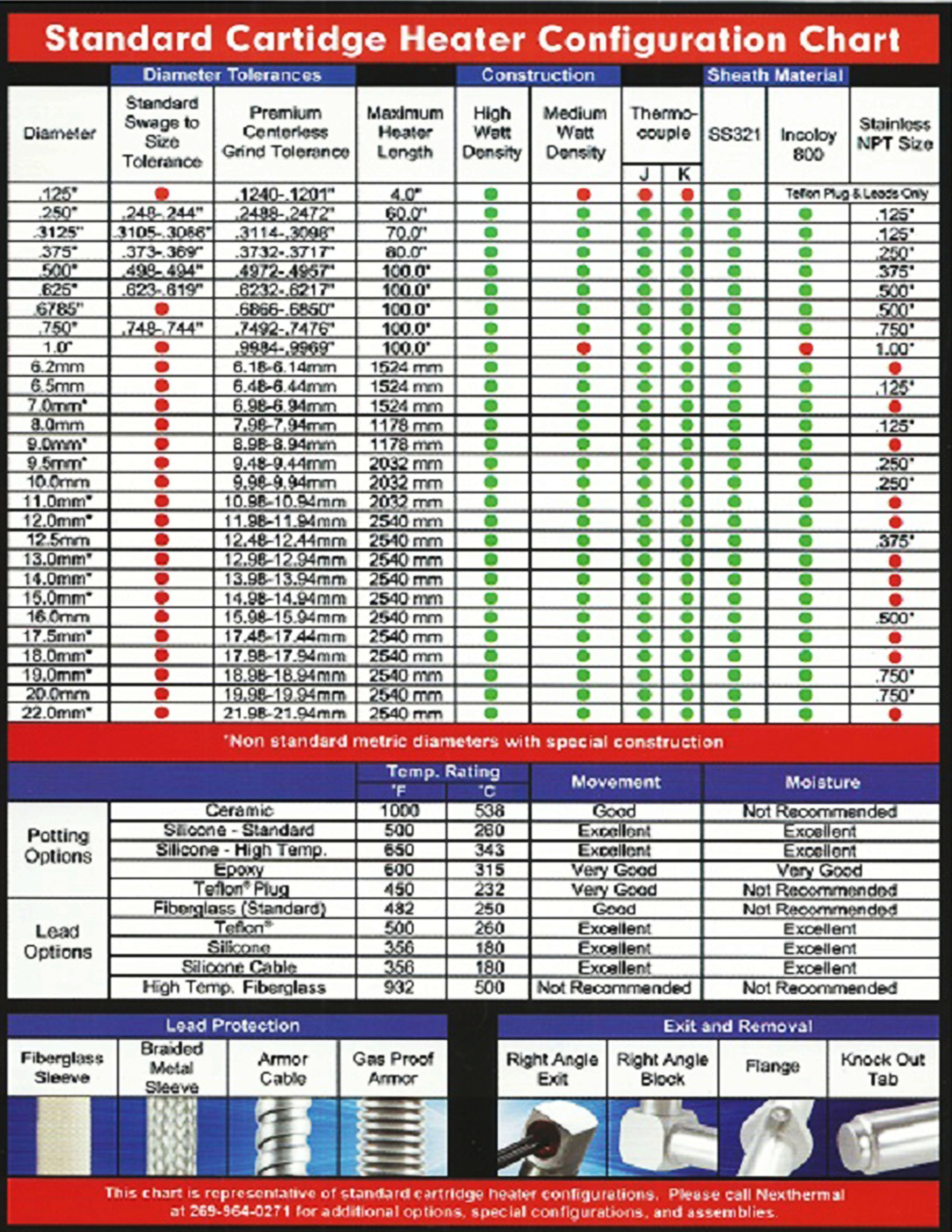

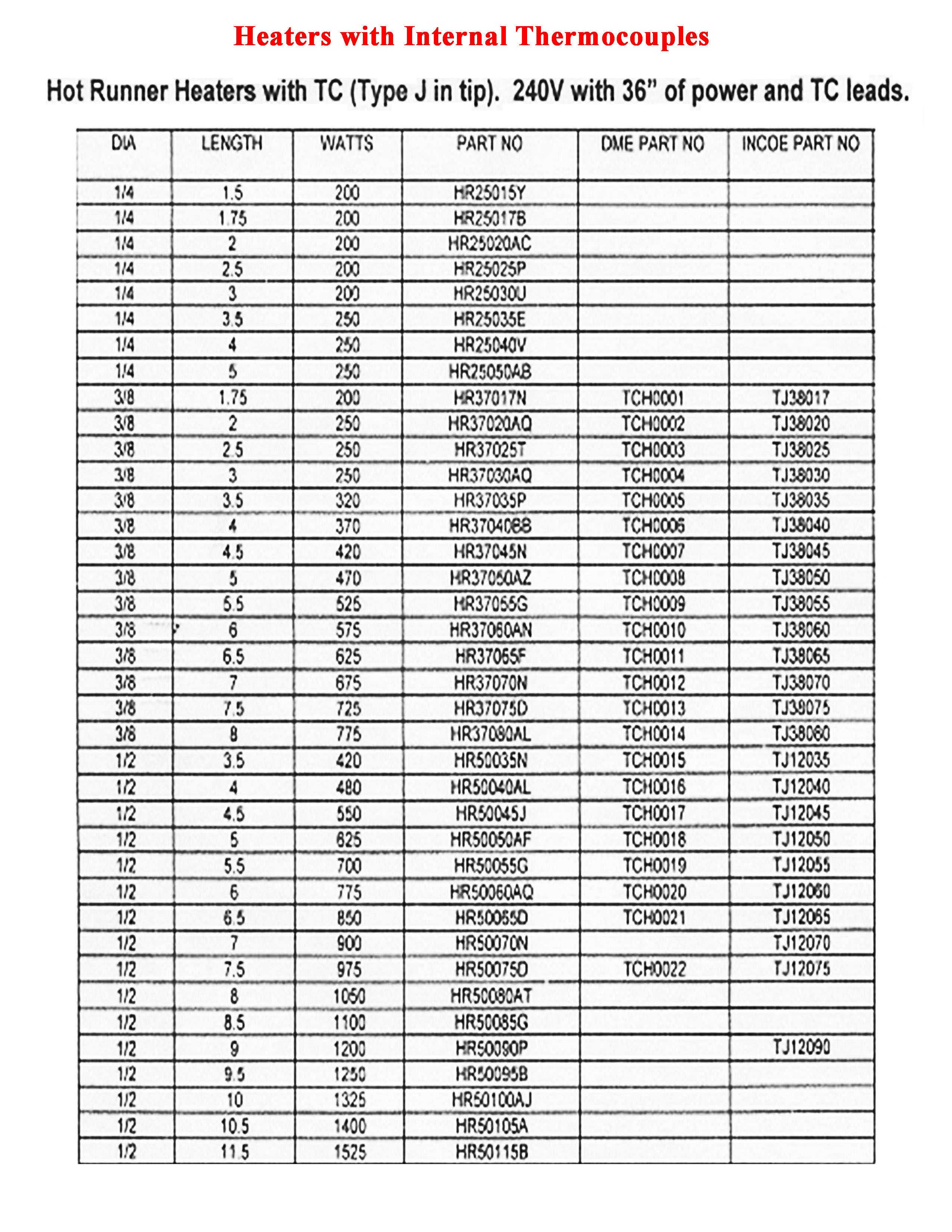

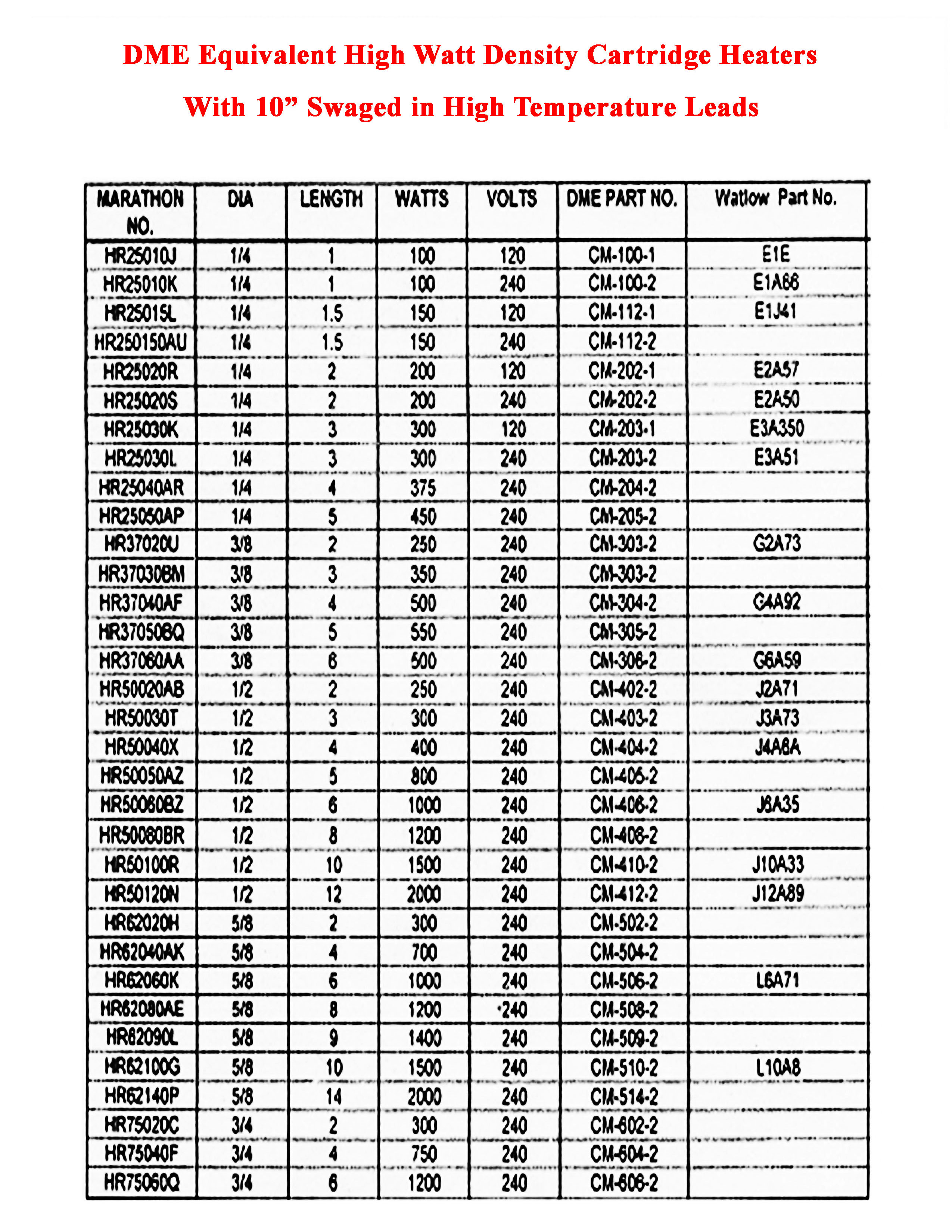

| DIAMETER (NOM) | 1/4" | 5/16" | 3/8" | 1/2" | 5/8" | 3/4" | 1" |
| DIAMETER (ACTUAL) | 0.246 | 0.310 | 0.371 | 0.496 | 0.621 | 0.746 | 0.996 |
| MAX LENGTH | 36" | 36" | 72" | 96" | 96" | 96" | 96" |
| MAX VOLTAGE CSA | 240V | 240V | 480V | 480V | 480V | 480V | 480V |
| MAX VOLTAGE | 250V | 250V | 600V | 600V | 600V | 600V | 600V |
| MAX WATTAGE AT 240V | 1200W | 1300W | 2000W | 3000W | 5300W | 5300W | 5300W |
| WATTAGE TOLERANCE | +5% -10% | ||||||
| DIAMETER TOLERANCE | +/- 0.002" | ||||||
| LENGTH TOLERANCE | +/-2% OF LENGTH | ||||||
| CAMBER TOLERANCE | 0.010" PER FT UP TO 12" | ||||||
| 0.018" PER FT ABOVE 12" | |||||||
