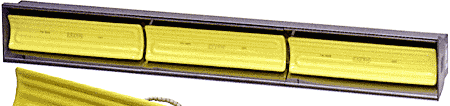

Chameleon ceramic infrared Heaters
 |
Chameleon Ceramic Infrared Heaters are available in many of
the standard sizes and ratings as Black Body
Ceramic Heaters. The feature is a unique coloring that
changes from yellow to brown when processing temperature
ranges are reached. This provides a visual indication that a
heater is operating. In large radiant panels or ovens, where
hundreds of heaters might be installed, it is possible to
determine items not working by the color of each element. If
an item has returned to the original yellow color,
replacement is necessary. A-1 Chameleon elements can be
mounted in any of the "A" Series housings, or can be used in custom panels. |
| Catalog Number | Wattage | Voltage | X |
| A-1-1000-Y | 1000 | 220/230 | 9-5/8" |
| A-1-650-Y | 650 | 220/230 | 9-5/8" |
| A-2-500-Y | 500 | 220/230 | 4-3/4" |
| A-2-325-Y | 325 | 220/230 | 4-3/4" |
|
Aluminized Steel Reflector
|
Stand-Off
Mounting Bracket |
Terminal
Blocks |
